MS Series

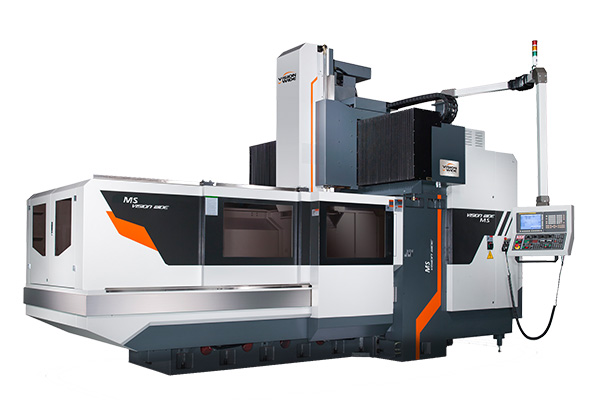

Bridge-type Milling Machine MS Series

  • MS series portal mill machines, with typical VW product features of rigid structure and high precision, are designed with a direct-driven X-Y transmission device and torque enlarger unit on X-axis, increasing the X-Y moving accuracy and offering the combination control of speed and precision.

    • Twin Hydraulic cylinders plus pressured nitrogen accumulator balancing design provide smooth & accurate feeding performance. Z-axis can reach 0.5G acceleration and keep a holding position at power failure.
    • Heavy duty roller ways on the X-Y axis contain the advantages of low friction and high stiffness.
    • High stiffness light-weight table design, ensures high acceleration/deceleration when loading.
    • Y-axis upper roller way is positioned on the top of the beam at max. span design offers strong support.
    • The torque enlarger unit on the X-axis increases the transmission torque and ensures transmission accuracy.
  • Model Unit MS-2116 MS-2616 MS-3116 MS-4116 MS-2120 MS-2620 MS-3120 MS-4120
    X axis travel mm 2,100 2,600 3,100 4,100 2,100 2,600 3,100 4,100
    Y axis travel mm 1,600 2,000
    Z axis travel Box way mm 800 / 1,020   (Opt.) 800 /1,020 (Opt.)
    Linear way mm 800 / 1,000   (Opt.) 800 /1,000 (Opt.)
    Table dimension mm 2,000x1,500 2,500x1,500 3,000x1,500 4,000x1,500 2,000x1,800 2,500x1,800 3,000x1,800 4,000x1,800
    Max. table load kg 8,000 9,000 10,000 12,000 8,000 9,000 10,000 12,000
    Spindle motor power(cont./30 min. rated) kW 18.5/22  (22/26Opt.) 18.5/22  (22/26Opt.)
    Spindle speed Box way 2-step gear rpm 6,000/4,000(Opt.) 6,000/4,000(Opt.)
    Linear way Direct-driven rpm 10,000(Opt.)/ 12,000(Opt.) 10,000(Opt.)/ 12,000(Opt.)
    Built-in rpm 10,000(Opt.) 10,000(Opt.)
    Cutting federate mm/min 1-10,000 1-10,000
    Rapid traverse(X/Y/Z) m/min XY：24  Z：15 X/Y/Z：18/24/15 XY：24 / Z：15 X/Y/Z：18/24/15
    ATC capacity Vertical type tool change pcs 32/40(Opt.) 32/40(Opt.)
    Floor-standing type vertical tool change pcs - -
    Floor-standing type vertical-horizontal tool change pcs - -

    Model Unit MS-2123 MS-2623 MS-3123 MS-4123 MS-2127 MS-2627 MS-3127 MS-4127
    X axis travel mm 2,100 2,600 3,100 4,100 2,100 2,600 3,100 4,100
    Y axis travel mm 2,300 2,700
    Z axis travel Box way mm 800/1,020(Opt.) 800/1,020(Opt.)
    Linear way mm - -
    Table dimension mm 2,000x1,500 2,500x1,500 3,000x1,500 4,000x1,500 2,000x1,800 2,500x1,800 3,000x1,800 4,000x1,800
    Max. table load kg 8,000 9,000 10,000 12,000 8,000 9,000 10,000 12,000
    Spindle motor power(cont./30 min. rated) kW 18.5/22  (22/26Opt.) 18.5/22  (22/26Opt.)
    Spindle speed Box way 2-step gear rpm 6,000/4,000(Opt.) 6,000/4,000(Opt.)
    Linear way Direct-driven rpm - -
    Built-in rpm - -
    Cutting federate mm/min 1-10,000 1-10,000
    Rapid traverse(X/Y/Z) m/min X/Y/Z : 24/20/15 X/Y/Z：18/20/15 X/Y/Z : 24/20/15 X/Y/Z：18/20/15
    ATC capacity Vertical type tool change pcs - -
    Floor-standing type vertical tool change pcs 32/40(Opt.) 32/40(Opt.)
    Floor-standing type vertical-horizontal tool change pcs 32(Opt.)/40(Opt.)/60(Opt.) 32(Opt.)/40(Opt.)/60(Opt.)

    ※Please contact sales for more details.


  • Standard Accessory & Function
    1. FANUC 0iMF PLUS controller
    2. 6,000rpm 2-step gear type spindle (Z axis box way)
    3. Spindle cooling system
    4. Twin hydraulic cylinders with pressured air assistance balancing system
    5. Centralized auto lubrication system
    6. Independent lubrication oil collector
    7. Air blast through spindle
    8. Wash gun and pneumatic interface
    9. Cutting fluid cooling system
    10. Sheet metal guard (without roof)
    11. Swiveling arm type operation panel
    12. Screw type chip conveyor on table side
    13. Caterpillar type chip conveyor / Water tank
    14. Heat exchanger for electcrical cabinet
    15. Working lamp
    16. Operation cycle finish and alarm light
    17. Movable manual pulse generator
    18. Footswitch for tool clamping
    19. RJ 45 interface
    20. XYZ axis absolute pulse coder feedback
    21. XYZ axis travel hard limits protection
    22. Spindle cutting load software protection
    23. Remote monitoring software-standard
    24. Auto power off function
    25. Vision Wide FX graphical user interface
    26. Foundation pads and bolts kits
    27. Adjustment tool and tool kits
    28. Technical manuals
      (operation, maintenance manual and circuit diagram)
    Optional Accessory & Function
    1. 4,000rpm 2-step gear type spindle (Z axis box way)
    2. 8,000/ 10,000rpm belt-driven spindle
    3. 10,000(BT-50)/ 12,000(BT-40)rpm direct-driven spindle
    4. Z axis travel 1,020mm(box way spindle head, for AC head attachment)
    5. Z axis travel 1,000mm(linear way spindle head)
    6. 200/ 300/ 400/ 500mm higher column(MS-xx12 series only for 200mm higher column)
    7. Spindle ring cutting coolant device (for no head attachment)
    8. Coolant through spindle system 20/70 bar (Vertical spindle)
    9. Coolant through tool holder interface
    10. Coolant through tool holder 5/20 bar cutting fluid interface
    11. Oil skimmer
    12. Oil mist cooling device
    13. 32/40/60 tools magazine with arm type ATC
    14. Enclosed sheet metal guard with roof
    15. Helical bladed screw conveyor on table sides
    16. Chip cart
    17. Air conditioning for electrical cabinet
    18. XYZ axis linear scale feedback
    19. 3 axis independent manual pulse generator
    20. Sub working table
    21. Rotary table
    22. Interface reserved for fourth axis
    23. Spindle cutting load hardware protection
    24. Z axis retract function at power failure
    25. Anti-collision and process simulation software
    26. Remote monitoring software-professional
    27. Auto tool length measurement
    28. Auto workpiece coordinate measurement
    29. TranMSormer
    30. Auto warm up function
    31. Spindle and structure temperature thermal compensation system
