SV Series

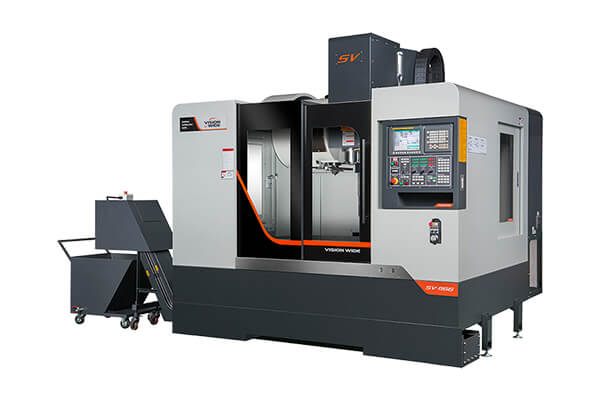

High Speed Die Mold Machining Center SV Series

  • SV series vertical machining center is designed for Mold & Die Industry. 3 axes are adopted roller-type linear guide ways to realize the best reliability and to ensure the highest performance on speed, precision, and rigid cutting requirements. Combining surface between spindle and motor are through scraping to ensure spindle performance and accuracy.

    • One-piece casting for axial bearing housing, XYZ axes with motor direct-driven ball-screw to make sure high positioning accuracy.
    • Z axis with non-counter balance driven to ensure high acceleration transmission (Ball-bar test less than 0.01mm).
    • Roller type linear guideway, loading, and rigidity are 30% higher than other C-type machines with ball bearing type.

    Friendly Operation

    • Front large door for easy loading workpiece, the wider visible zone for easily watching cutting status.
    • Sliding doors at both sides allow less space occupation and ensure no chips or coolant splash out during operation.
    • Reinforced glass safety protection.
    • Stainless cover, prolonged machine lifetime.
    • Various usages, a storage space located under operation panel allows the user easy to put their objects; movable chip conveyor allows user’s working requirement.
    • Convenient coolant and pneumatic interface, front location of coolant / pneumatic interface lets the user easily operate.
  • Model Unit SV-800 SV-855 SV-1166 SV-1266
    X axis travel mm 800 850 1,100 1,200
    Y axis travel mm 500 550 600 600
    Z axis travel mm 510 550 600 600
    Table size  mm 900×450 1,000×510 1,200×610 1,400×610
    Max. table load kg 500 500 700 800
    Spindle speed rpm 10,000 (STD)
    12,000 / 15,000    		 10,000 (STD)
    12,000 / 15,000    		 10,000 (STD)
    12,000 / 15,000    		 10,000 (STD)
    12,000 / 15,000
    Spindle power (cont. / 30 min.) kW 7.5/11 7.5 / 11 7.5 / 11 7.5 / 11
    Cutting federate m/min 1-11 1-10 1-10 1-10
    Rapid traverse (X/Y/Z) m/min 36 / 36 / 30 30 / 30 / 24 30 / 30 / 24 36 / 36 / 30
    ATC capacity pcs 24 / 32 24 / 32 24 / 32 24 / 32

    Model Unit SV-1270 SV-1470 SV-1480 SV-1680
    X axis travel mm 1,200 1,400 1,400 1,600
    Y axis travel mm 700 700 800 800
    Z axis travel mm 650 650 700 700
    Table size  mm 1,350×650 1,550×650 1,600×750 1,600×750
    Max. table load kg 1,200 1,500 1,500 1,500
    Spindle speed rpm 10,000 (STD)
    12,000 / 15,000    		 10,000 (STD)
    12,000 / 15,000    		 10,000 (STD)
    / 12,000 / 15,000
    G:6,000    		 10,000 (STD)
    / 12,000 / 15,000
    G:6,000
    Spindle power (cont. / 30 min.) kW 7.5 / 11 (11 / 15) 7.5 / 11 (11 / 15)  11 / 15 (15 / 18)  11 / 15 (15 / 18)
    Cutting federate m/min 1-10 1-10 1-10 1-10
    Rapid traverse (X/Y/Z) m/min 36 / 36 / 30 30 / 30 / 24 30 / 30 / 24 30 / 30 / 24 (15)
    ATC capacity pcs 24 / 32 24 / 32 24 / 32 / 40 24 / 32 / 40

    ※Please contact sales for more details.


  • Standard Accessory & Function
    1. FANUC 0iMF PLUS controller
    2. 10,000 rpm/#40/direct driven
    3. 24 tools magazine with arm type ATC
    4. Air blast through spindle
    5. Spindle cooling system
    6. Spindle ring cutting coolant device (for no head attachment)
    7. Switch for tool clamping
    8. Centralized auto lubrication system
    9. Enclosed sheet metal guard with roof
    10. Working lamp 　
    11. Operation cycle finish and alarm light
    12. Wash gun and pneumatic interface
    13. Cutting coolant system　
    14. Movable manual pulse generator
    15. RJ45 interface　
    16. Heat exchanger for electrical cabinet　
    17. XYZ-axis absolute pulse coder feedback
    18. Spindle load hardware protection
    19. Remote monitoring software-standard
    20. Auto power off
    21. Vision Wide FX graphical user interface
    22. 10.4" LCD/MDI
    23. Foundation pads and bolts kits
    24. Adjustment tool and tool kits
    25. Technical manuals (operation, maintenance manual and circuit diagram)
    Optional Accessory & Function
    1. MISTUBISHI M70 controller / HEIDENHAIN iTNC 620 controller
    2. 12,000/15,000rpm/#40/direct driven
    3. 32 tools magazine with arm type ATC
    4. Coolant through spindle system 20/50bar
    5. Coolant through tool holder 5/20 bar cutting fluid interface
    6. oil skimmer
    7. Chip flushing system
    8. Air conditioning for electrical cabinet
    9. XYZ axis linear scale feedback
    10. Auto tool length measurement
    11. Auto workpiece coordinate measurement
    12. Rotary table
    13. Interface reserved for fourth axis
    14. Caterpillar type chip conveyor / Water tank
    15. Chip cart
    16. Remote monitoring software-Professional
    17. Z-axis retract function at power failure
    18. Transformer
    19. Auto warm up
