VHT Series

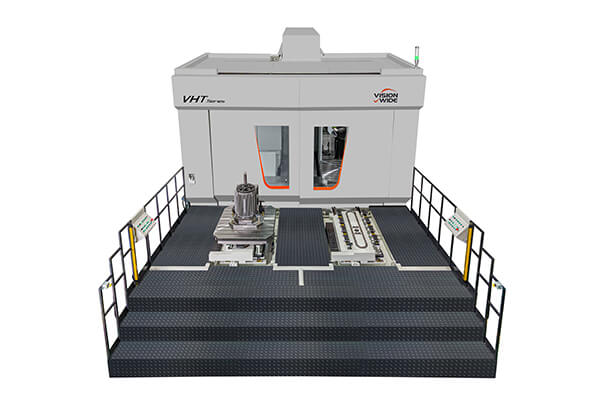

VHT Series Horizontal Machining Center

  • VHT series construction high-performance machining via high feed design and multi-table capability.

    • With various high-torque and high-speed spindle, it is widely used in the valve, turret, crankcase, precision mold, and differential machining.
    • With dual workstations APC and 6-pallet change APC system, it enhances the machine’s utilization and realizes fully automatic processing.
    • Cutting Speed 1~10,000mm/min
  • Model Unit VHT-1000 VHT-1250 VHT-1416
    X axis travel mm 2,000 / 2,500 (Opt.)
    Y axis travel mm 1,300 / 1,600 (Opt.)
    Z axis travel mm 1,300
    Table size (L×W) mm 1,000 x 1,000 1,250 x 1,250 1,400 x 1,600
    Max. table load (central area) kg 3,500 5,000 8,000
    Spindle speed rpm 6,000
    Spindle power (cont. / 30 min.) kW 22/26
    Cutting feed rate m/min 10
    Rapid traverse (X/Y/Z) m/min 20 / 15 / 20
    Tool magazine capacity pcs 40 / (60 / 90 / 120 / 180 / 240 Opt.)

    ※Please contact sales for more details.
