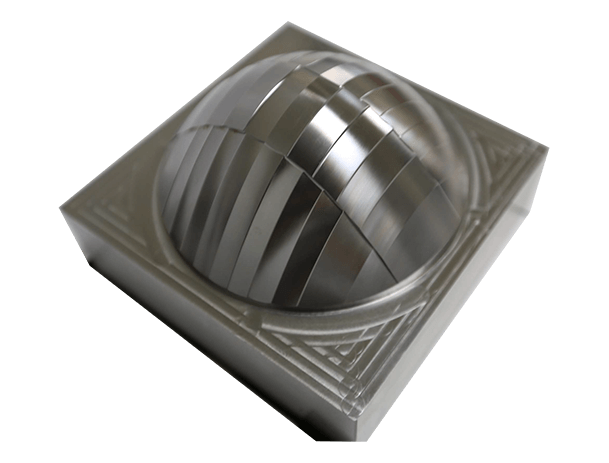

Automobile Light Mold
- Model：ASM
- Material：2311 Die steel
- Size：L360 x W160 x H360mm
- Linear project cutting
- Multi inclined plan, oblique angle cutting, improve machining efficiency
- Surface roughness : Ra 0.4µm
- 0.04mm contour accuracy
-

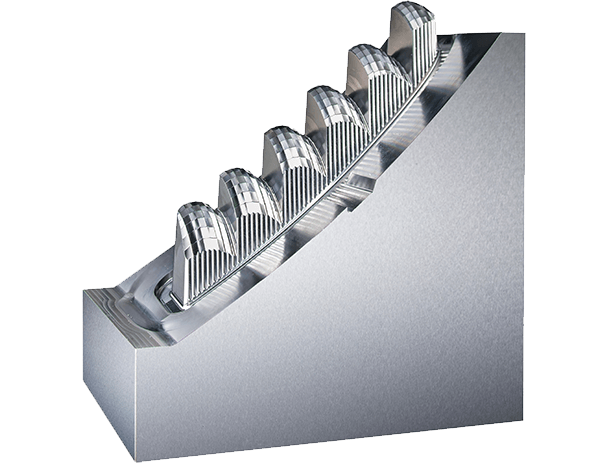

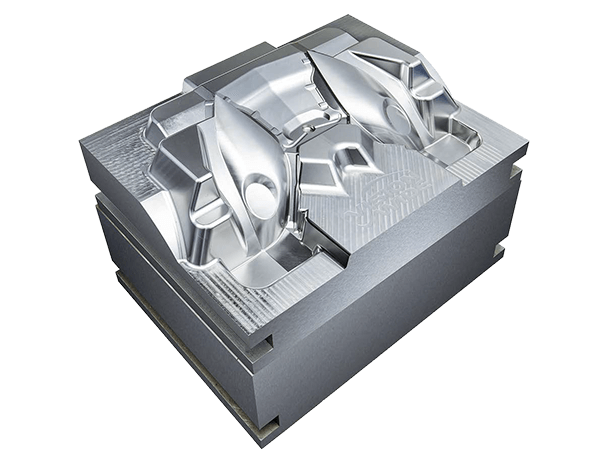

Headlight Mold
- Model：SE/ GS/ GSF
- Material：P20 Die Steel
- Size：L800 x W550 x H250mm
- 0.2G high acceleration mold finishing
- D25 High feed rough machining： F10,000mm/min
- D10R5 High speed mold surface finish machining：S12,000rpm, F4,000mm/min
- Surface roughness : Ra0.4μm
- 0.04 mm high contour accuracy
-

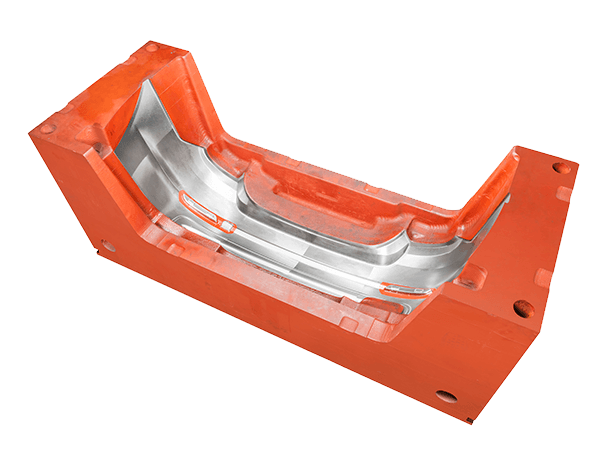

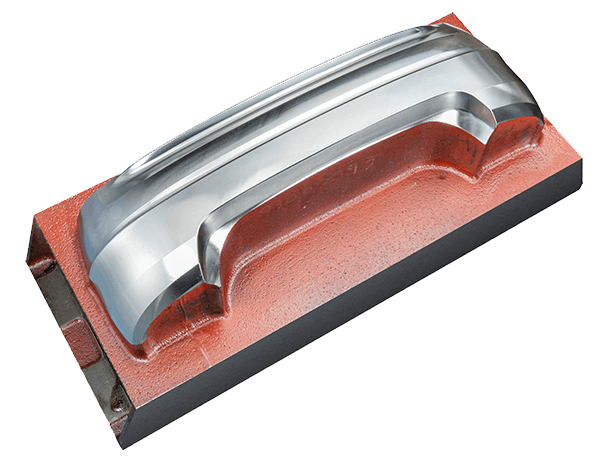

Bumper Mold
- Model：SF
- Material：FC300
- Size：L1,000 x W400 x H350mm
- Long spindle nose is the benefit to enhance the tool rigidity and reduce the cutting vibration.
- D20R10 ball end tool reciprocating projection machining
- Pitch : 0.5mm
- Spindle speed : 12,000rpm
- Feed rate : 5,000 mm/min
-

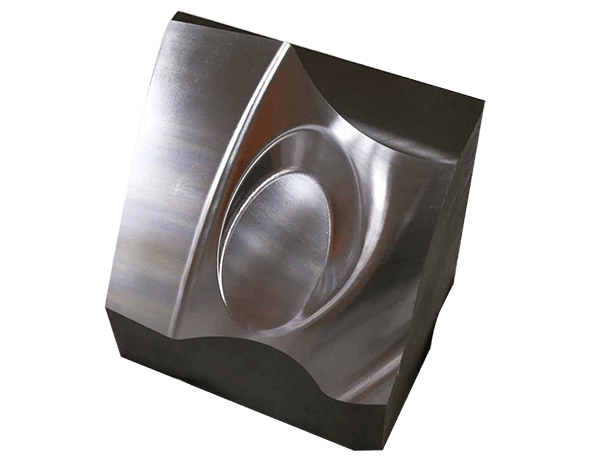

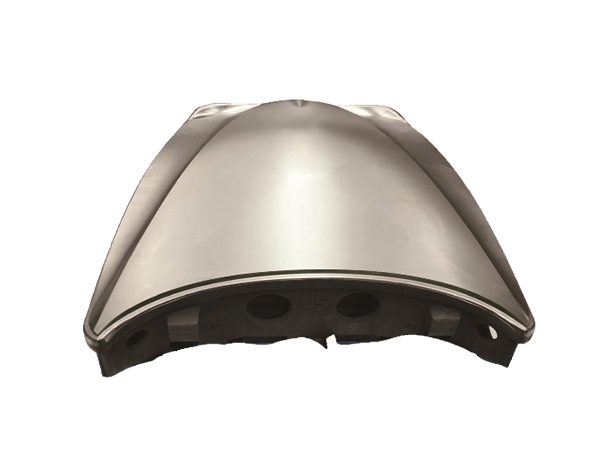

Automotive Reflector Light Core
- Model：SE/GS series
- Material：NAK80 die steel
- Size：160 x 160 x 100 mm
- Surface roughness : Ra 0.4μm
- Contour accuracy 0.02 mm
- D3R1.5 ball end machining
- Spindle speed : 12,000 rpm
- Feed rate : 1,500 mm/min
-

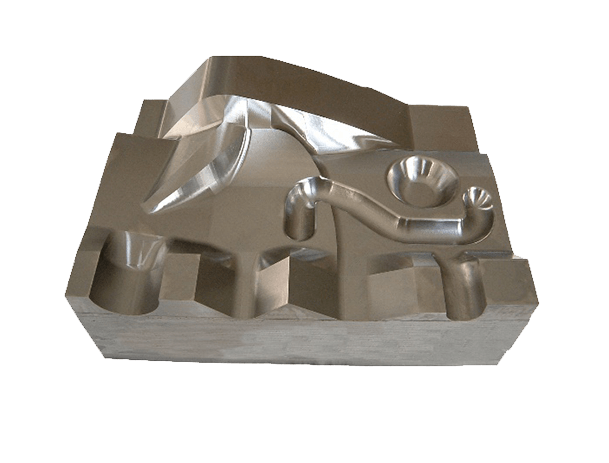

Headlight Cavity Finishing
- Material：Alloy steel
- Size：L151mm x W105mm x H155mm
- Surface height difference：103mm
- Surface roughness：Ra 0.8 mm
- Long tool machining：tool length 262mm
- Tool：D12R6 Hard ball end
- Tool path ：Zig-zag contour processing
- Spindle speed：8,000 rpm
- Feed rate：2,000mm/min
- Total machining time：1hr 58min
-
Benz Mold
- Material：NAK 80 die steel
- 0.2G high acceleration mold machining
- High federate rough machining：D25、F10,000mm/min
- High speed surface finish machining：F4,000mm/min
- Surface roughness : Ra 0.4μm
- 45°Project zig-zag cutting
- Spindle speed : 12,000 rpm
- Feed rate : 4,000 mm/min
-
Bumper Mold
- Model : FA
- Material：FC300
- Size：900 x 2300 x930mm
- 5-axis synchronized machining, 30% machining efficiency improved.
- Long spindle nose enhance the tool rigidity and reduce the cutting vibration.
- D20R10 ball end tool
- Project zig-zag cutting
- Spindle speed : 8,000rpm
- Feed rate : 5,000 mm/min
-

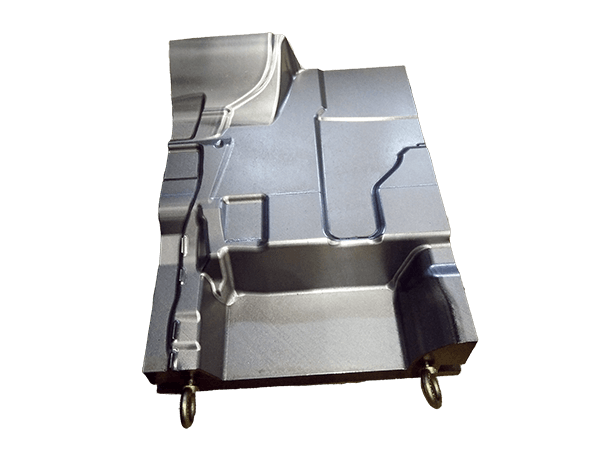

Automotive Sheet Metal Mold
- Model : FA
- Material：FC300
- Size：2300 x 1600 x 250mm
- 0.2G high acceleration mold machining
- High feedrate die surface finishing: F7,000mm/min
- High clear machining path
- Total finish time：6.3hr
- D25 ball end tool
- 45°Project zig-zag cutting
- Spindle speed : 8,000rpm
- Feed rate : 7,000 mm/min
-
Engine Hood Mold
- Material：FC300
- Size：2,000 x 1,600 x 500mm
- 10 m/min high speed machining
- 0.3G high acceleration machining
- Total finish time：5.2 hrs.
- D25 ball end tool
- Pitch：0.5mm
- Surrounding isometric machining
- Spindle speed : 12,000rpm
- Feed rate : 5000 mm/min
-

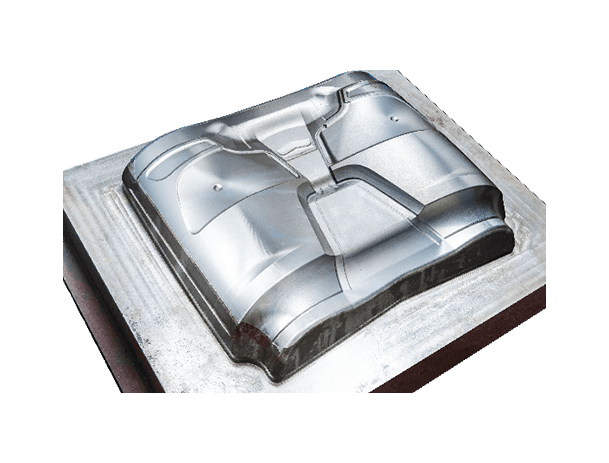

Car Stamping Mold
- Material：P20
- Size：L640mm x W505mm x H270mm
- Finish Tool：D16R8 Ball End
- Finish Pitch：0.3mm
- Tool Path：45angle project zig-zag cutting
- High feed rate finishing of mold surface F3000→F5000
- High acceleration cutting 0.05G→0.2G
- Total finishing time reduce 20%
- 6hr08min→4hr54min
- Surface roughness：Ra 0.6μm
- Spindle Speed：15,000 rpm
- Feed rate：5,000mm/min
-

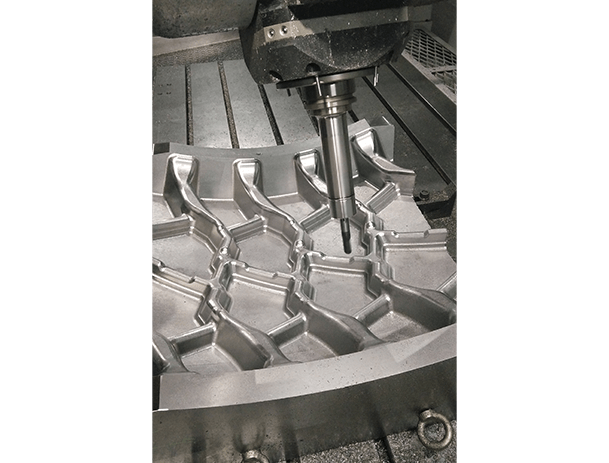

Tire Mold (Segment Type)
- Model：FA
- Material：S45C
- Size：660 x 600 x 260mm
- Corner smooth flow cut via 5-axis synchronized machining.
- D25 High feed rough cutting: F10,000
- F3,000 R6 finishing
- Multi-axis project machining
- Spindle speed : 15,000 rpm
- Feed rate : 4,000 mm/min
-

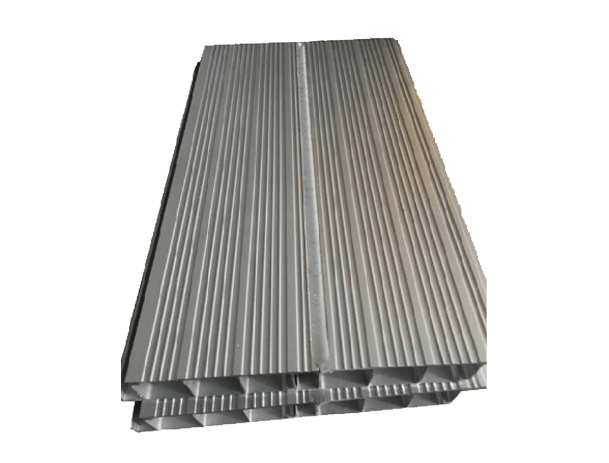

Friction Stir Welding - Aluminum Extrude Workpiece
- Model: SE/ SF/ F/ SM
- Material：Aluminum
- Thickness: 6mm
- Low Warpage
- Environmental Friendly
- Well Welding
- Well Integrate CNC machining with FSW function.
-

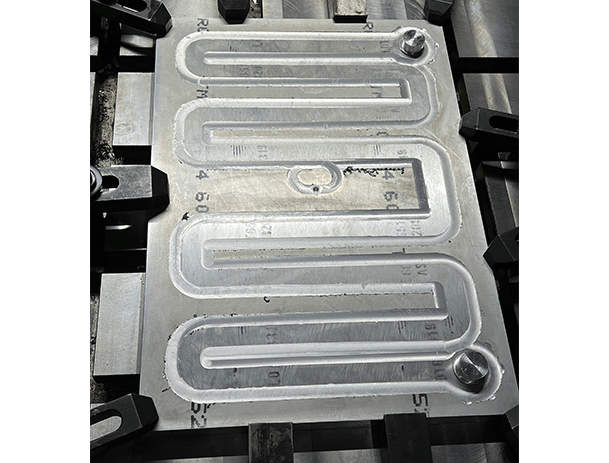

Friction Stir Welding - Aluminum Heat Exchanger
- Model: SE/ SF/ F/ SM
- Material：Aluminum
- Welding Thickness : 6mm
- No leakage
- Low Warpage
- Environmental Friendly
- Perfect Welding
- Well Integrate CNC machining with FSW function.
-
Friction Stir Welding - Cooling housing for electric vehicle
- Model: SE/ SF/ F/ SM
- Cast aluminum alloy friction stir welding
- Reduce material waste
- Less restricted in cooling channel design
