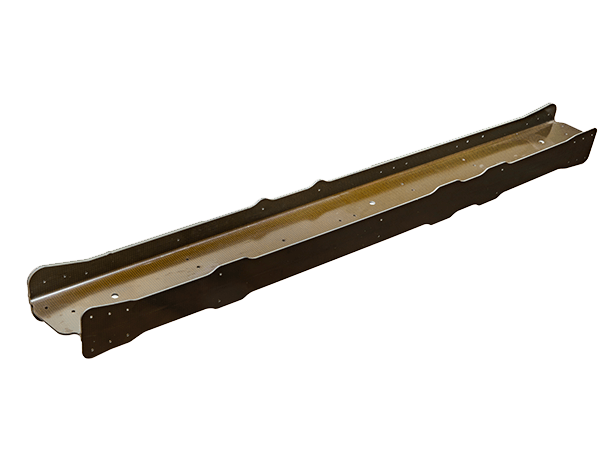

Aerospace CFRP structure
- Model : ADM
- Material : CFRP
- Size：L1,060 x W120 x H90 mm
- 5 axis machining with 1 setup process
- 12,000 rpm High speed slotting process with 5 axis synchronized machining
- 18,000 rpm high speed drilling avoid delamination
- -10℃ Spiral tube cooler application, limited the cutting temperature.
- Dust collection system reducing dust pollution
- Machining time : 30min
-

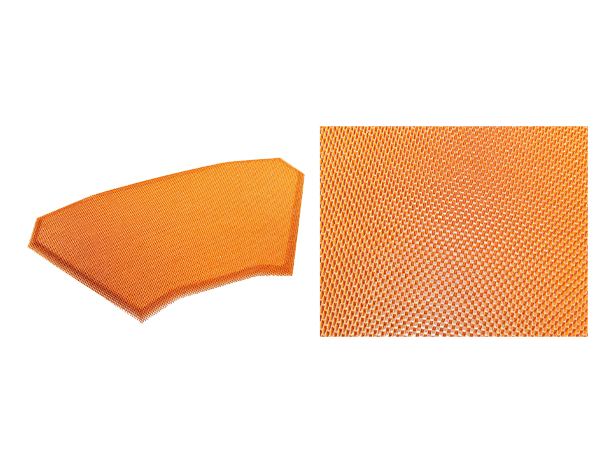

Aerospace Nomex Honeycomb structure
- Model : UC
- Material : Nomes Honeycomb
- 6 axis ultrasonic machining
- 20,000Hz ultrasonic cutting with frequency tracing system
- Oriented ultrasonic blade cutting
- Rotated ultrasonic disc cutting
- Vacuum Table for workpiece clamping
-
-

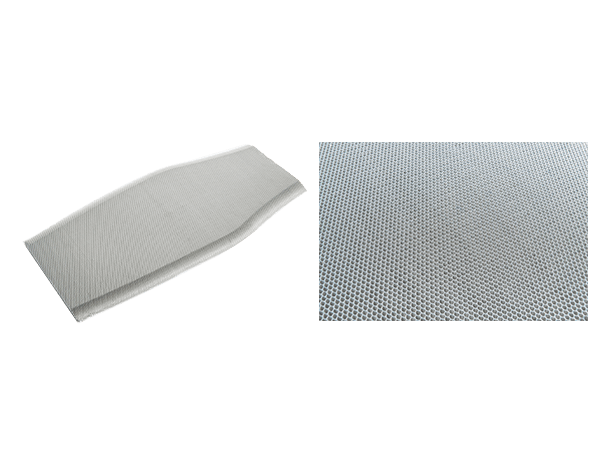

Aerospace Aluminium Honeycomb structure
- Model : UC /GSF
- Material : Aluminium Honeycomb
- 5 axis ultrasonic machining
- 20,000Hz ultrasonic cutting with frequency tracing system
- Oriented ultrasonic blade cutting
- Rotated ultrasonic disc cutting
- Vacuum Table for workpiece clamping
