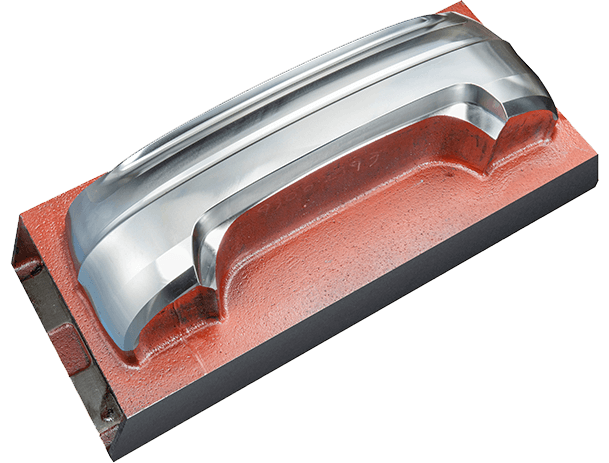

  • Bumper Mold

  • Bumper Mold

    • Model：SF
    • Material：FC300
    • Size：L1,000 x W400 x H350mm
    • Long spindle nose is the benefit to enhance the tool rigidity and reduce the cutting vibration.
    • D20R10 ball end tool reciprocating projection machining
    • Pitch：0.5mm
    • Spindle speed : 12,000 rpm
    • Feed rate : 5,000 mm/min

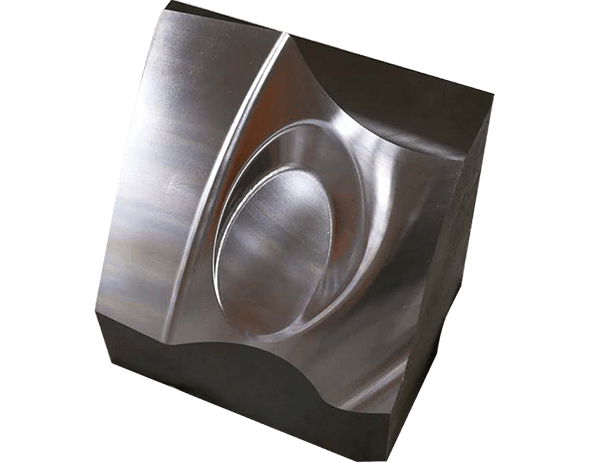

  • Headlight Cavity Finishing

  • Headlight Cavity Finishing

    • Material：Alloy steel
    • Size：L151mm x W105mm x H155mm
    • Surface height difference：103mm
    • Surface roughness：Ra 0.8 mm
    • Long tool machining：tool length 262mm
    • Tool：D12R6 Hard ball end
    • Tool path ：Zig-zag contour processing
    • Spindle speed：8,000 rpm
    • Feed rate：2,000mm/min
    • Total machining time：1hr 58min
    Cutting Video

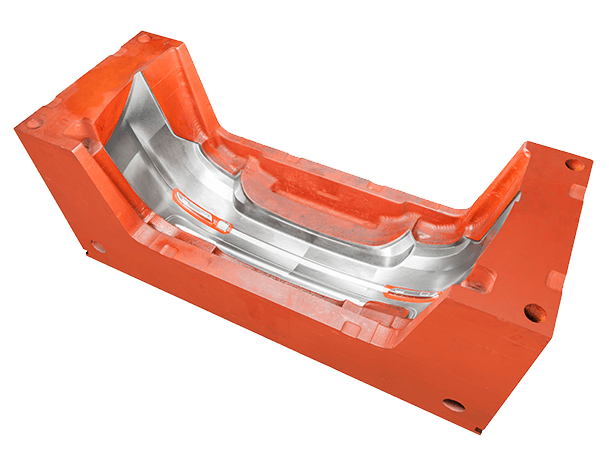

  • Bumper Mold

  • Bumper Mold

    • Model : FA
    • Material：FC300
    • Size：900 x 2300 x930mm
    • 5-axis synchronized machining, 30% machining efficiency improved.
    • Long spindle nose enhance the tool rigidity and reduce the cutting vibration.
    • D20R10 ball end tool
    • Project zig-zag cutting
    • Spindle speed : 8,000 rpm
    • Feed rate : 5,000 mm/min

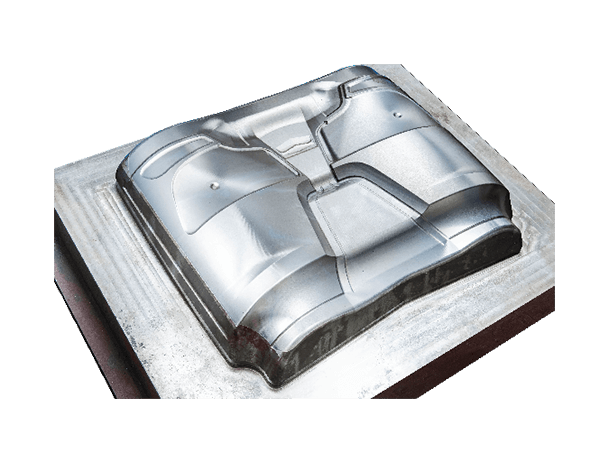

  • Automotive Sheet Metal Mold

  • Automotive Sheet Metal Mold

    • Model : FA
    • Material：FC300
    • Size：2300 x 1600 x 250mm
    • 0.2G high acceleration mold machining
    • High feedrate die surface finishing : F7,000mm/min
    • High clear machining path
    • Total finish time：6.3hr
    • D25 ball end tool
    • 45°Project zig-zag cutting
    • Spindle speed : 8,000 rpm
    • Feed rate : 7,000 mm/min

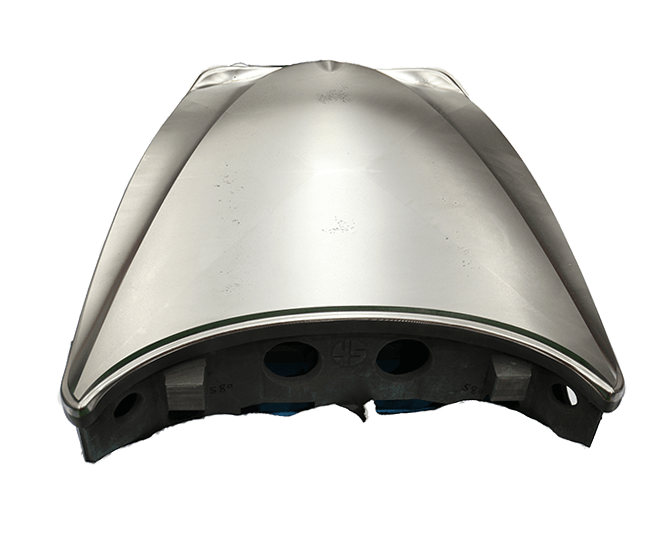

  • Engine Hood Mold

  • Engine Hood Mold

    • Material：FC300
    • Size：2,000 x 1,600 x 500mm
    • 10 m/min high speed machining
    • 0.3G high acceleration machining
    • Total finish time：5.2 hrs.
    • D25 ball end tool
    • Pitch：0.5mm
    • Surrounding isometric machining
    • Spindle speed : 12,000rpm
    • Feed rate : 5000 mm/min
    Cutting Video

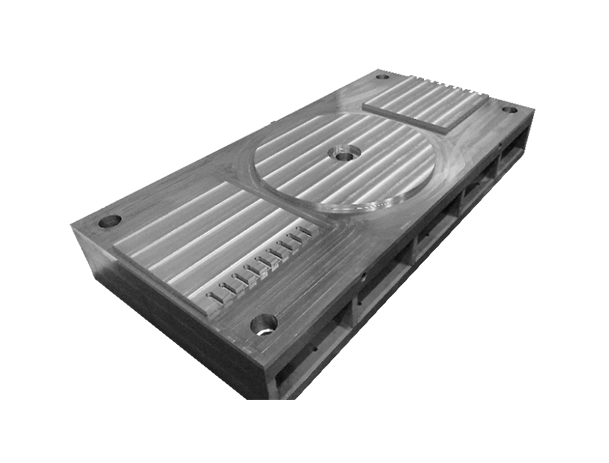

  • High Positioning Inspection Workpiece

  • High Positioning Inspection Workpiece

    • Model：F Series/ BM/ XM/ XML/ XMF
    • Material: FC30
    • Size：2,000 x 1,000 x 200mm
    • 1.8x0.8 m high position accuracy of boring hole：0.02mm
    • D900 Circular interpolation machining Circularity：0.02mm
    • 400x400mm Squareness：0.01mm

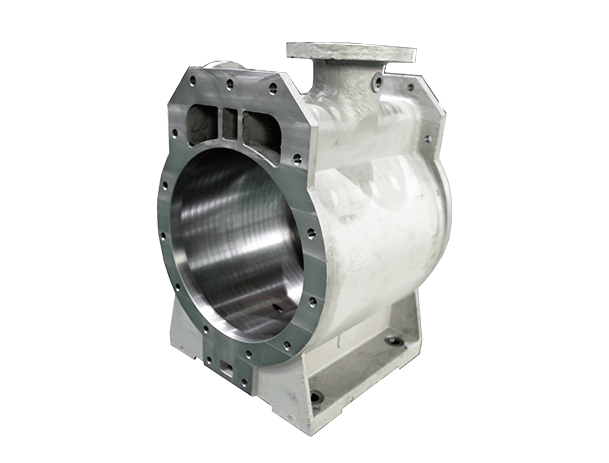

  • Pump

  • Pump

    • Vacuum Compressor Body
    • Model：ASM-FD
    • Material：FCD200
    • Size：W450 x L400 x H610mm
    • Mill-Turning machining
    • With APC function can offline setup, quick workpiece change, effectively reduce machining time by 20%
    • High precision performance
      • Plane Parallelism：0.02mm
      • Axial Concentricity：0.02mm
    Cutting Video

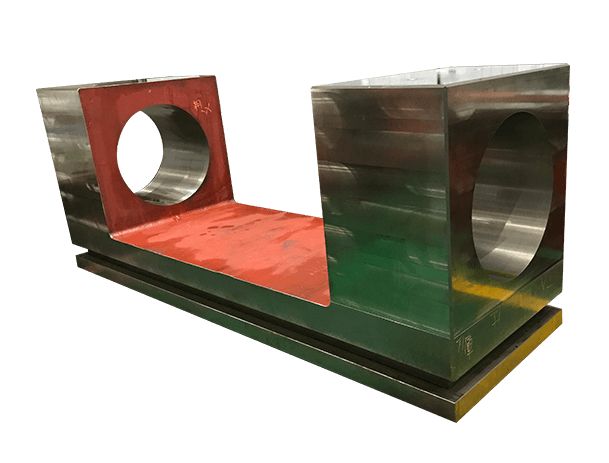

  • Large Opposite - Boring Workpieces

  • Large Opposite - Boring Workpieces

    • Model：F Series/ BM/ XM/ XML/ XMF
    • Material：FC30
    • Size：1,800 x 500 x 700mm
    • Hole Diameter：350mm
    • Hole Depth：350mm
    • Holes’ Coaxiality：0.025mm
    • The excellent precision of the machine
    • 5 axis level Tool Center Point Management
    • AC90°head directly turns the head to opposite boring
