Applications - 5-axis head
- Home
- Solution
- Multi-angle Machining
- 5-axis head
-
Turbine Blade
Features
- 5-axis synchronized machining,
- 2,000mm/min feed rate
- Aero component machining
Machining condition
- Dimension:D 300mm、H160mm
- Material:Aluminum
- Tool: D10 Ball End
- Cutting depth (Ap):0.2mm
- Tool Path: Surrounding
- Spindle speed:5,000rpm
- Tolerance: 0.01 mm
-
Tire Mold (Segment Type)
Features
- Corner smooth flow cut via 5-axis synchronized machining.
- High feed rough cutting:F10,000 D25 160cc/min
- F3,000 R5, 22 hours
Machining condition
- Size:L660mm、W600mm、H260mm
- Material:S45C
- Tool:D10R5 Ball End
- Tool Path:multi-axis project machining
- Path Pitch:0.2mm
- Spindle Speed:15,000rpm
-

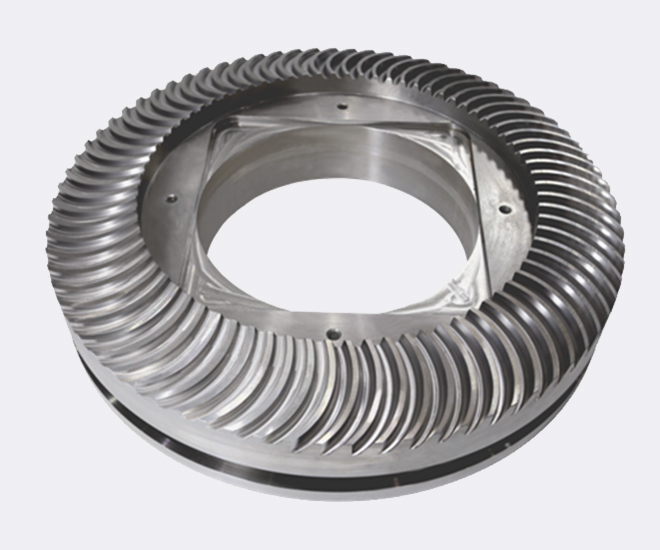

Spiral Bevel Gear
Features
- 5 axis synchronized machining
- Completed all teeth machining process in one machine
Machining condition
- Size:D800mm、H 160mm
- Material:S45C
- Tool:D8 R1 End mill
- Path Pitch:1,200 mm/min
- Spindle Speed:10,000 rpm
